A Levels Physics (9702)•9702/11/O/N/23

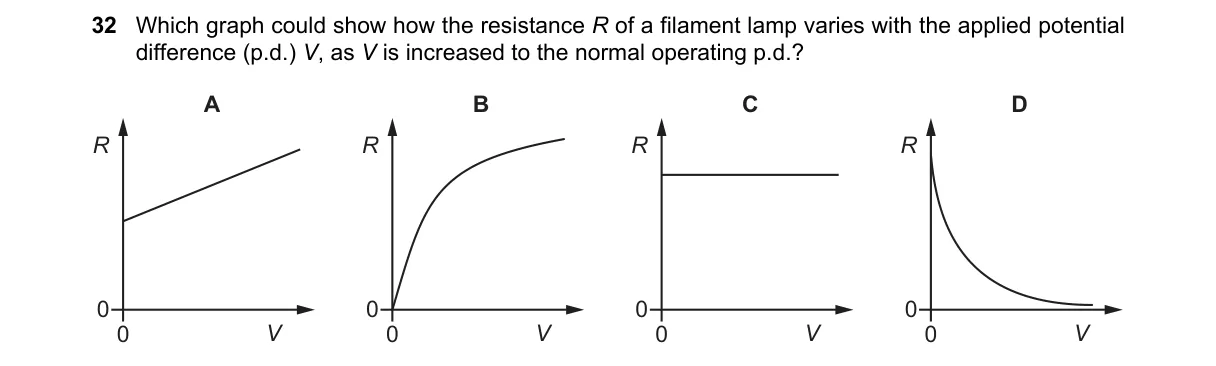

Question 32 from 9702/11/O/N/23

Explanation

Filament lamp resistance rises nonlinearly with voltage due to thermal effects

Steps:

  • Recall that filament lamps are non-ohmic; resistance depends on temperature.
  • As V increases, current heats the filament, raising its temperature.
  • Higher temperature increases resistance in metals like tungsten.
  • Thus, R vs V graph shows R increasing, steeper at higher V.

Why A is correct:

  • Option A depicts R rising nonlinearly with V, matching the positive temperature coefficient of resistance for metals (R ∝ T).

Why the others are wrong:

  • B shows constant R, typical of ohmic conductors like resistors, not lamps.
  • C shows decreasing R, incorrect as lamp resistance only falls when cooling.
  • D shows linear increase, oversimplifying the nonlinear heating effect.

Final answer: A

Topic: Resistance and resistivity

Practice more A Levels Physics (9702) questions on mMCQ.me
