A Levels Physics (9702)•9702/11/O/N/23

Explanation

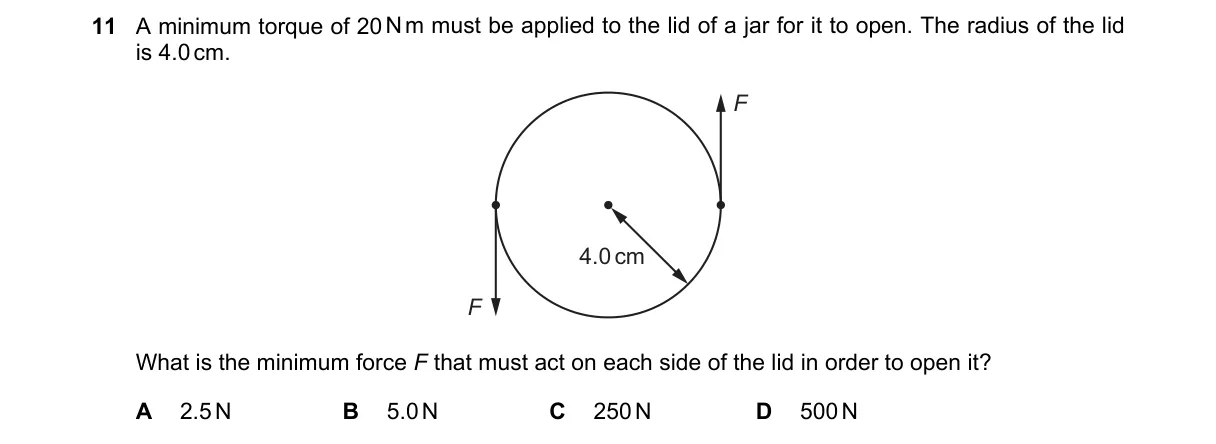

Torque from forces on opposite sides of lid
Steps:
- Convert radius to meters: r = 4.0 cm = 0.04 m.
- Two equal forces F act tangentially on opposite sides, each at lever arm r.
- Total torque τ = 2 F r = 20 Nm.
- Solve for F: F = τ / (2 r) = 20 / (2 × 0.04) = 250 N.
Why C is correct:
- Torque formula for two diametrically opposite tangential forces gives τ = 2 F r, yielding F = 250 N.
Why the others are wrong:
- A: 5 N underestimates by factor of 50, likely from unit confusion or division error.
- B: 50 N results from using r = 4 cm without converting to meters.
- D: 500 N assumes single force, ignoring the two-side application (τ = F r).
Final answer: C
Topic: Turning effects of forces
