A Levels Physics (9702)•9702/13/O/N/22

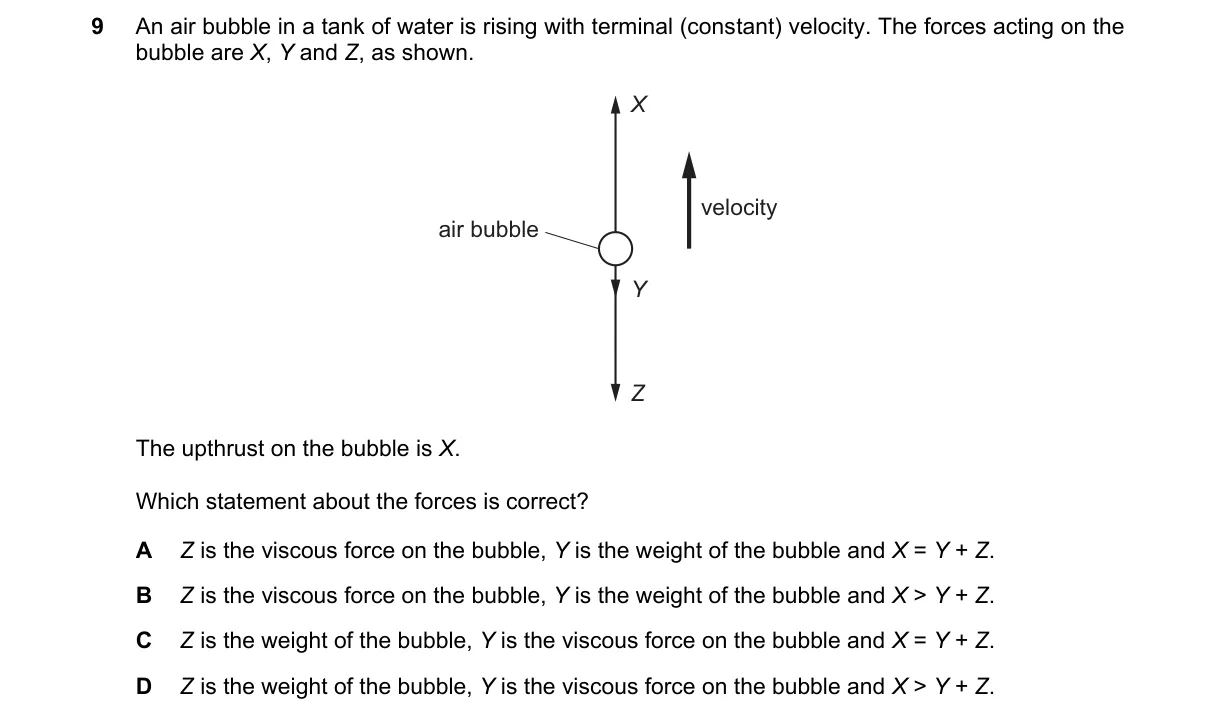

Question 9 from 9702/13/O/N/22

Explanation

Terminal Velocity Force Balance

Steps:

  • At terminal velocity, net force on bubble is zero for constant speed.
  • Buoyant force (upward) balances weight (downward) plus viscous drag (downward, opposing rise).
  • Diagram shows X upward (buoyancy), Y and Z downward.
  • Balance gives X = Y + Z; Z is viscous drag, Y is bubble weight.

Why A is correct:

  • Newton's first law requires buoyant force X to equal sum of weight Y and viscous force Z at equilibrium.

Why the others are wrong:

  • B: Misidentifies Z as weight and Y as viscous, contradicting diagram labels.
  • C: Correct equation but misidentifies forces, ignoring diagram's force directions.
  • D: Implies net upward force, causing acceleration, not constant velocity.

Final answer: A

Topic: Equilibrium of forces
