A Levels Physics (9702)•9702/13/O/N/20

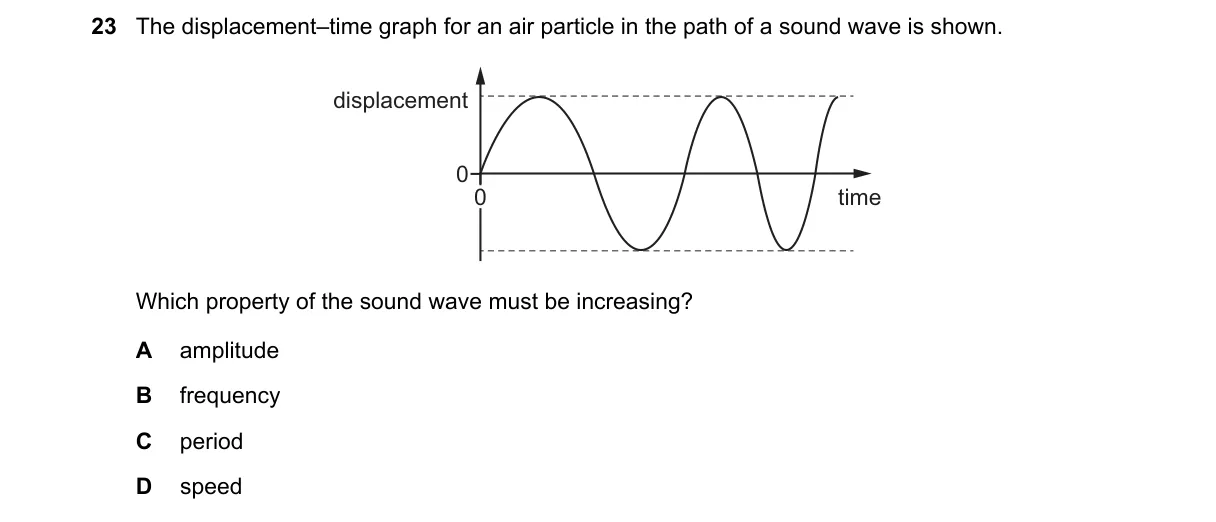

Question 23 from 9702/13/O/N/20

Explanation

Displacement-time graph shows shortening oscillation periods

Steps:

  • Examine the graph: particle displacement oscillates sinusoidally over time.
  • Identify peaks: successive peaks occur closer together as time progresses.
  • Measure intervals: time between peaks (period T) decreases.
  • Calculate frequency: f = 1/T, so decreasing T means increasing f.

Why B is correct:

  • Frequency f is oscillations per second; graph's compressing cycles directly show f rising per the wave equation y = A sin(2πft + φ).

Why the others are wrong:

  • A: Amplitude is peak displacement height; graph shows no increasing height.
  • C: Period T is time per cycle; shortening intervals mean T decreases.
  • D: Speed v = fλ requires spatial data; time graph alone shows no velocity change.

Final answer: B

Topic: Progressive waves
