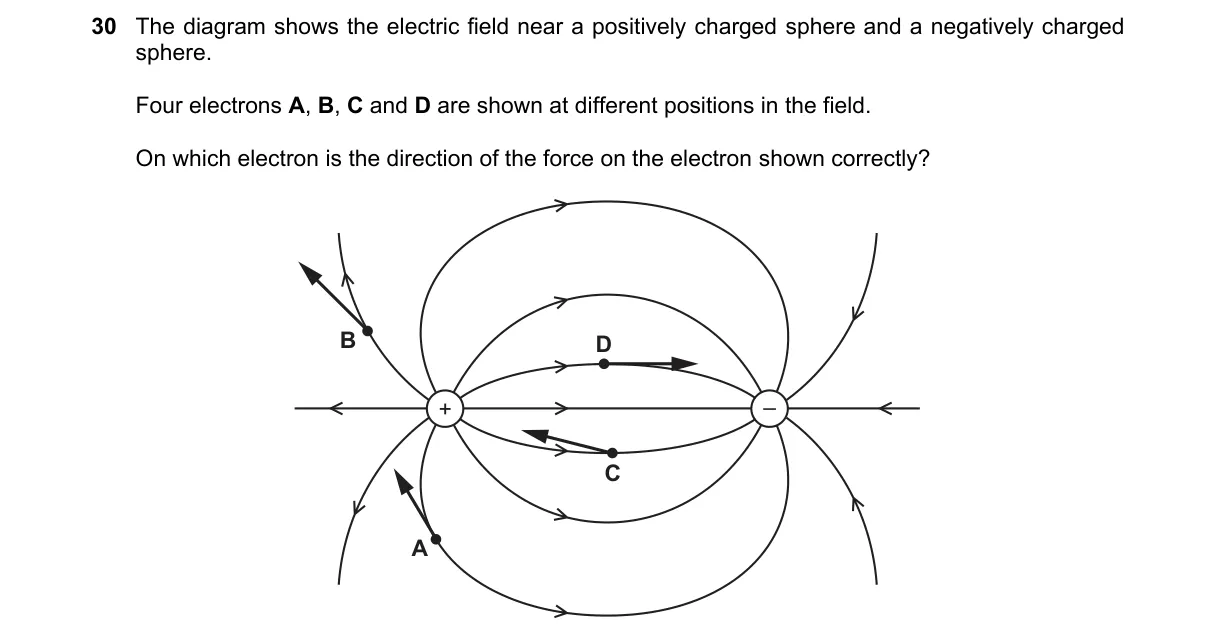

A Levels Physics (9702)•9702/11/O/N/20

Explanation
Force on electrons opposes electric field direction
Steps:
- Electric field points away from positive sphere and toward negative sphere.
- Force on electron (negative charge) is opposite to electric field vector: , where .
- At each electron's position, identify field direction based on proximity to spheres.
- Compare shown force arrow to expected opposite direction.
Why A is correct:
- Arrow at A points opposite the field (toward positive sphere), matching for negative charge.
Why the others are wrong:
- B: Arrow aligns with field, as if for positive charge.
- C: Arrow points toward negative sphere, following field instead of opposing it.
- D: Direction ignores local field from both spheres, showing incorrect opposition.
Final answer: A
Topic: Electric fields and field lines
