A Levels Physics (9702)•9702/12/O/N/19

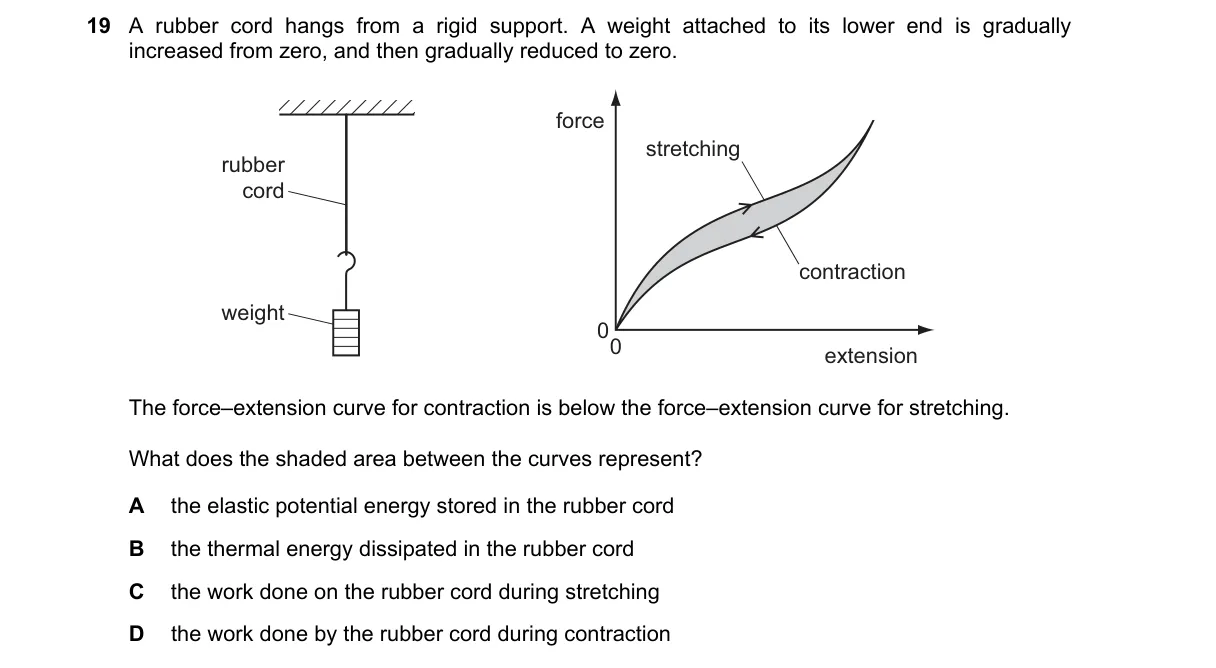

Question 19 from 9702/12/O/N/19

Explanation

Hysteresis loss in rubber cord

Steps:

  • The stretching curve shows work done on the cord, equal to the area under it.
  • The contraction curve shows work done by the cord, equal to the area under it.
  • The shaded area between curves is the difference in these areas.
  • This difference represents energy dissipated as heat due to internal friction in rubber.

Why B is correct:

  • In hysteresis, the loop area quantifies dissipated energy from viscoelastic damping, per the definition of mechanical hysteresis.

Why the others are wrong:

  • A: Stored elastic potential energy is the area under the stretching curve alone.
  • C: Work done on the cord during stretching is the full area under the stretching curve.
  • D: Work done by the cord during contraction is the full area under the contraction curve.

Final answer: B

Topic: Elastic and plastic behaviour

Practice more A Levels Physics (9702) questions on mMCQ.me
