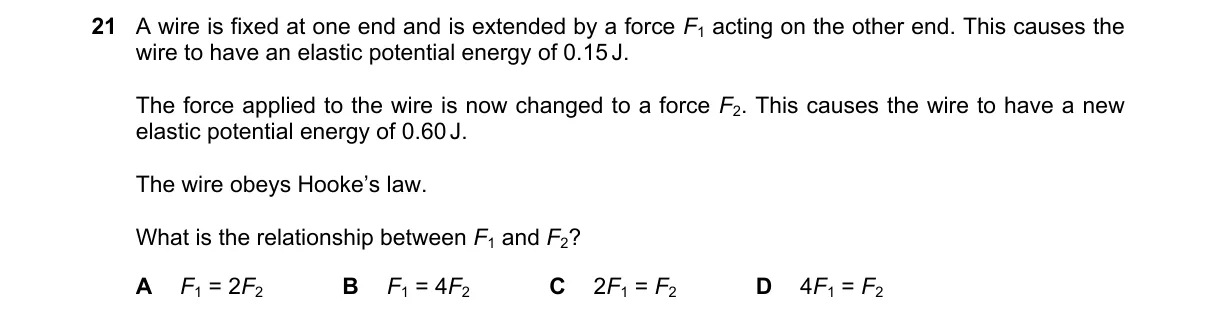

A Levels Physics (9702)•9702/13/M/J/24

Explanation
Elastic potential energy is proportional to the square of the applied force for Hooke's law.
Steps:
- Elastic potential energy U = (1/2) F^2 / k, where k is the spring constant.
- For the first case, 0.15 = (1/2) F^2 / k.
- For the second case, 0.6 = (1/2) F2^2 / k.
- Divide equations: 0.6 / 0.15 = 4 = (F2 / F)^2, so F2 / F = 2, and F2 = 2F.
Why none of the options match exactly:
- The calculated relationship is F2 = 2F (or F = 0.5 F2), but options A and B reverse the ratio, while C and D ignore the energy difference.
Final answer: F2 = 2F
Topic: Elastic and plastic behaviour
