A Levels Physics (9702)•9702/13/M/J/23

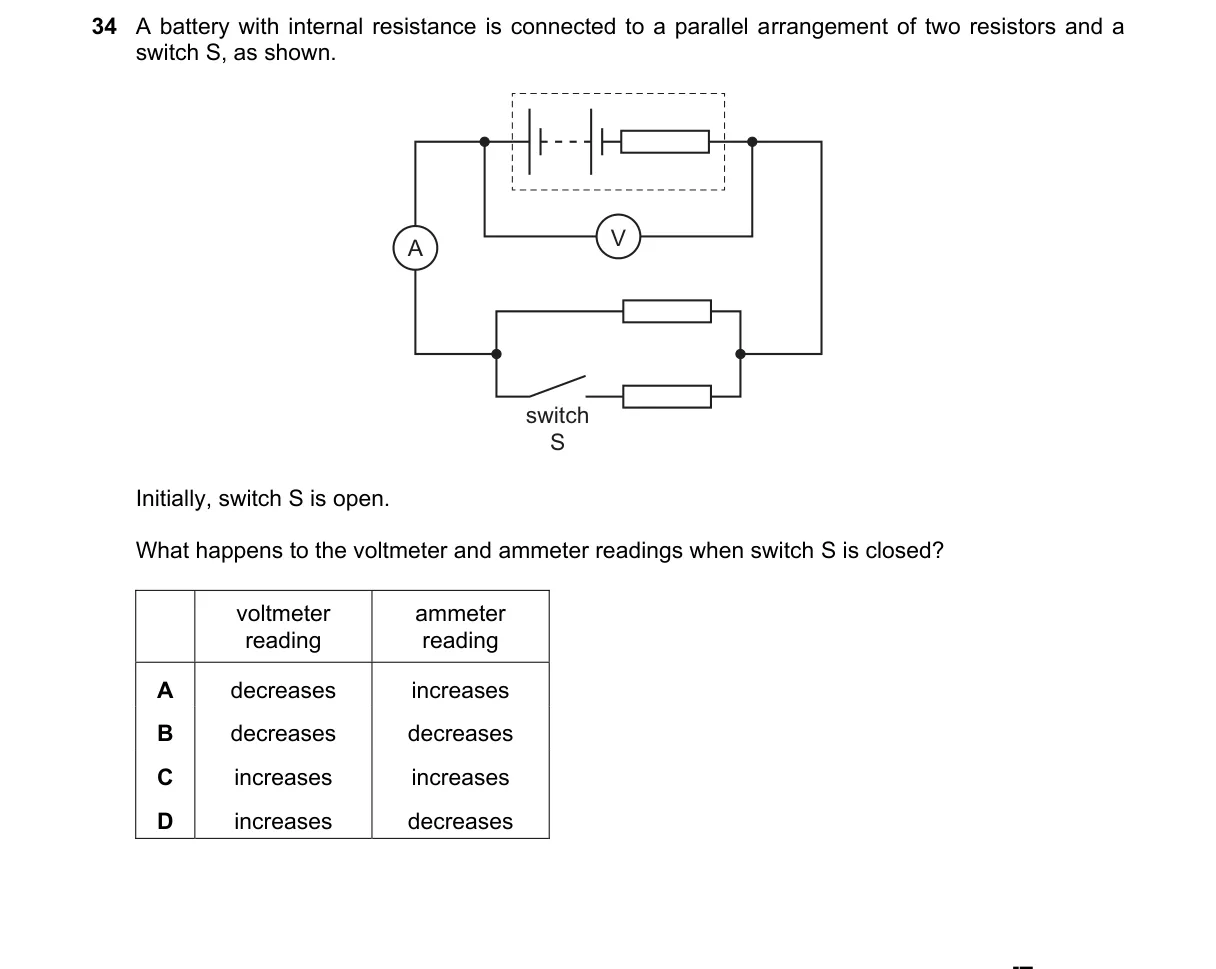

Question 34 from 9702/13/M/J/23

Explanation

Closing switch reduces equivalent resistance of load

Steps:

  • With S open, current flows through one resistor only, so equivalent resistance is higher.
  • Closing S adds a parallel resistor, lowering the total equivalent resistance of the load.
  • Lower load resistance draws more total current from the battery, increasing ammeter reading (total current).
  • Higher total current causes greater voltage drop across internal resistance, decreasing terminal voltage (voltmeter reading across load).

Why A is correct:

  • Adding parallel path decreases load resistance per Ohm's law (V=IR), increasing current and internal voltage drop (V_terminal = E - Ir).

Why the others are wrong:

  • B: Voltage decreases, not increases, due to internal drop.
  • C: Ammeter reading increases with lower resistance.
  • D: Voltmeter reading decreases from higher current through internal r.

Final answer: A

Topic: Practical circuits
