A Levels Physics (9702)•9702/12/M/J/23

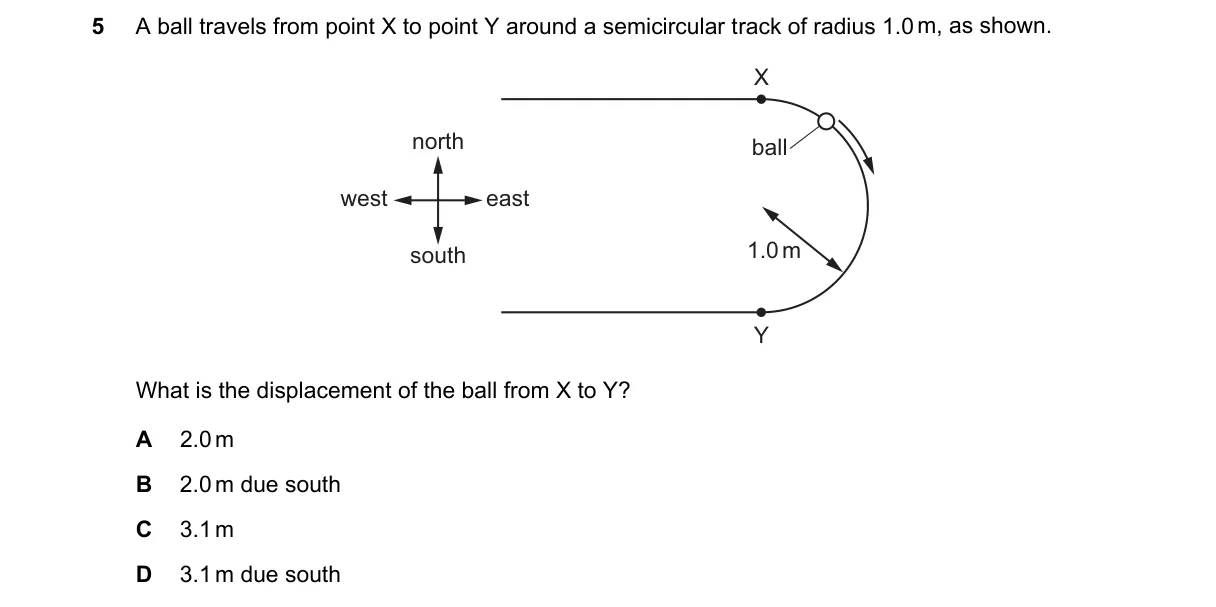

Question 5 from 9702/12/M/J/23

Explanation

Displacement is the straight-line vector from start to end point

Steps:

  • Points X and Y are the endpoints of the semicircular track's diameter.
  • Displacement magnitude equals the diameter: 2 × radius = 2 × 1.0 m = 2.0 m.
  • The path is semicircular, so Y lies directly south of X along the diameter.
  • Thus, displacement is 2.0 m due south.

Why B is correct:

  • Displacement is defined as the straight-line vector between initial and final positions; for a semicircle, this is the diameter (2r) in the southward direction.

Why the others are wrong:

  • A: Omits direction; displacement requires both magnitude and direction as a vector.
  • C: 3.0 m exceeds the diameter; confuses with a larger incorrect distance.
  • D: 3.1 m approximates the curved path length (πr ≈ 3.14 m), but displacement ignores the path.

Final answer: B

Topic: Scalars and vectors
