A Levels Physics (9702)•9702/13/M/J/22

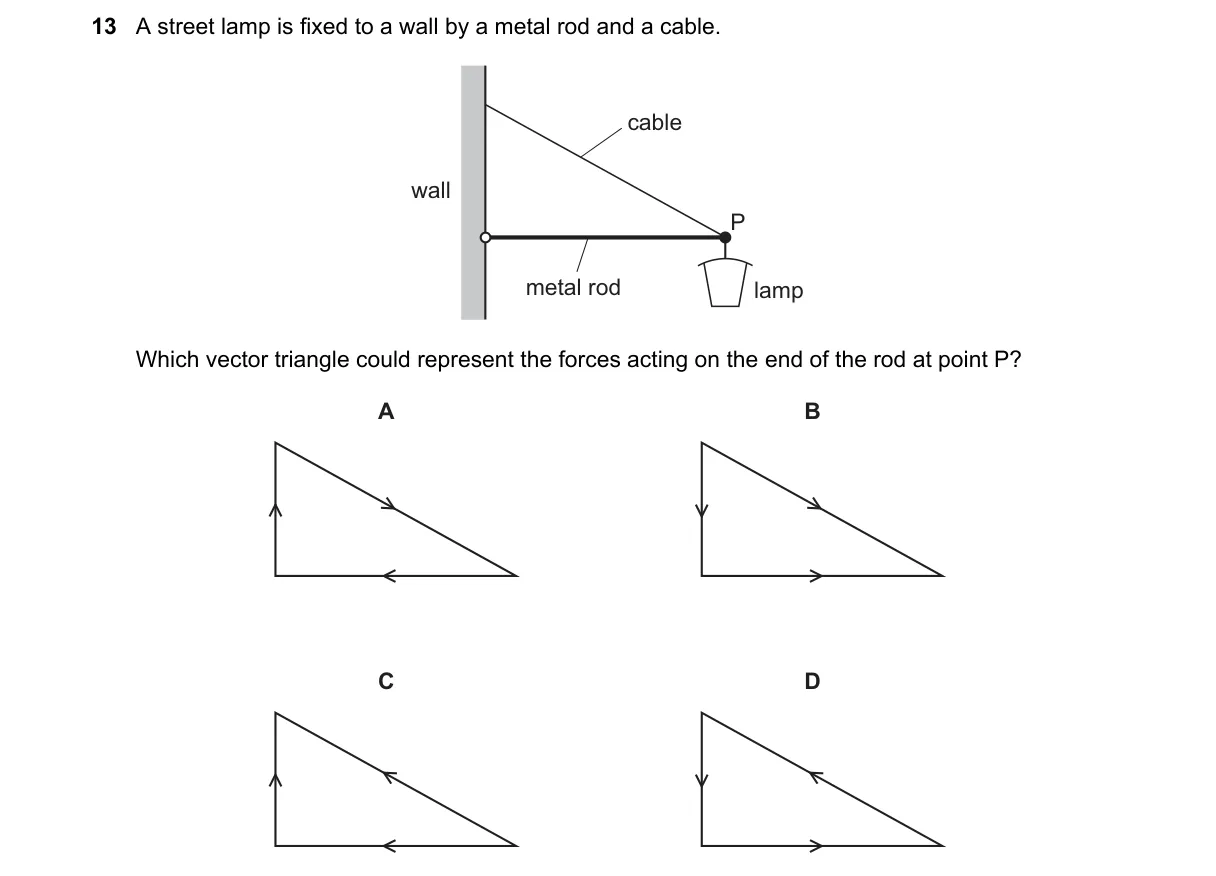

Question 13 from 9702/13/M/J/22

Explanation

Forces in equilibrium form a closed vector triangle

Steps:

  • Identify forces at P: tension T in cable (upward at angle), compression C in rod (along rod toward wall), weight W of lamp (downward).
  • For equilibrium, T + C + W = 0, so vectors form closed triangle.
  • Sketch triangle: start with W vertical down, add T at cable angle, close with C opposite rod direction.
  • Compare to options; D matches directions and closure.

Why D is correct:

  • Vectors close per vector addition rule, with T opposing W partially and C balancing horizontally.

Why the others are wrong:

  • A: Triangle doesn't close, violating equilibrium condition.
  • B: Incorrect angles; T not at cable's direction.
  • C: Vectors show tension in rod instead of compression.

Final answer: D

Topic: Equilibrium of forces
