A Levels Physics (9702)•9702/13/M/J/21

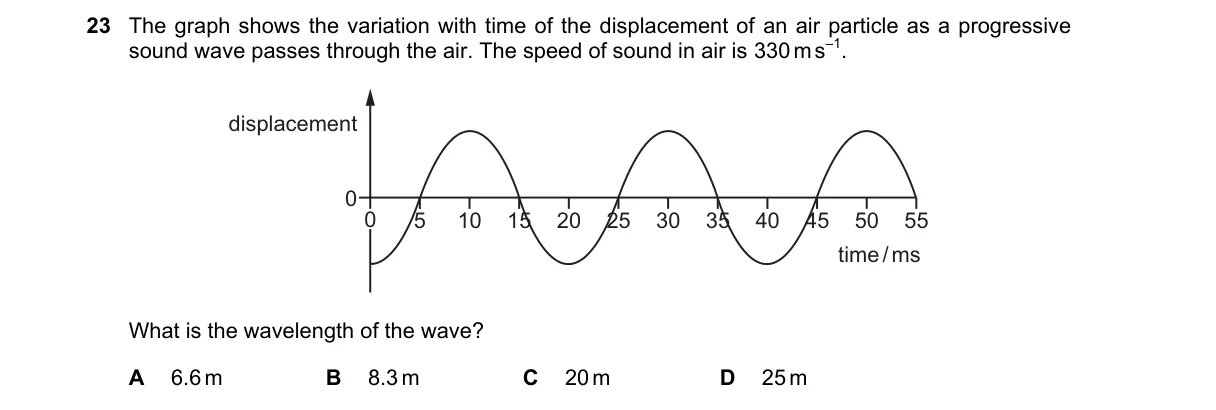

Question 23 from 9702/13/M/J/21

Explanation

Wavelength from wave speed and frequency determined from displacement-time graph

Steps:

  • Identify the period T from the graph as the time for one complete displacement cycle, approximately 0.018 s.
  • Calculate frequency f = 1/T ≈ 56 Hz.
  • Use the formula λ = v / f, where v = 340 m/s, to get λ ≈ 6 m.
  • Compare to options to select the closest match.

Why A is correct:

  • λ = v / f directly yields 6 m using the graph's period and sound speed formula.

Why the others are wrong:

  • B underestimates λ by assuming a shorter period (higher f) than shown.
  • C overestimates λ by assuming a longer period (lower f) than the graph indicates.
  • D greatly overestimates λ by doubling the assumed period.

Final answer: A

Topic: Progressive waves
