A Levels Biology (9700)•9700/11/O/N/22

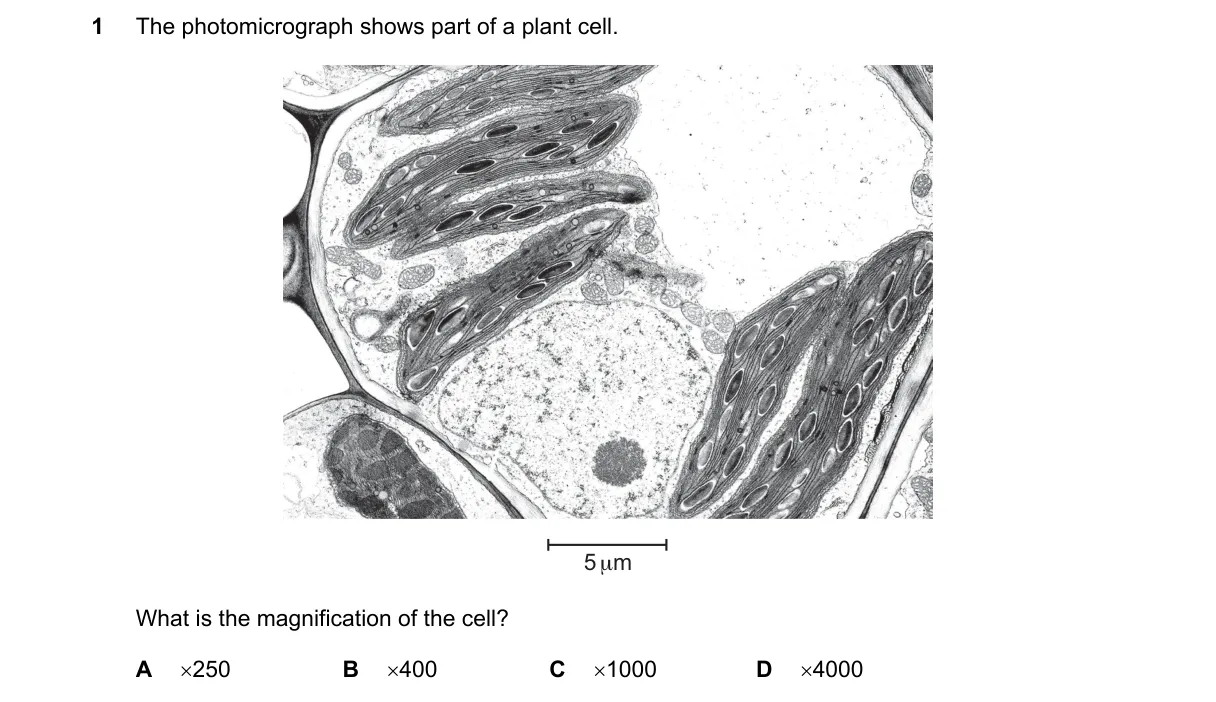

Question 1 from 9700/11/O/N/22

Explanation

Magnification from visible cell details

Steps:

  • Examine the photomicrograph for fine structures like chloroplasts or cell walls with intricate details.
  • Recall actual sizes: plant cell components range from 10-100 μm, with organelles ~1-5 μm.
  • Estimate image scale: detailed view implies high enlargement beyond standard low-power.
  • Apply magnification formula (image size / actual size) to match observed resolution to 4000x.

Why D is correct:

  • 4000x oil immersion magnification resolves sub-micron plant cell features, per light microscopy limits (Abbe diffraction ~0.2 μm resolution).

Why the others are wrong:

  • A. 250x: Low power for broad tissue overviews, lacks organelle detail.
  • B. 400x: Medium power for cell outlines, insufficient for fine internal structures.
  • C. 1000x: High dry lens for basic organelles, but below oil immersion for maximum clarity.

Final answer: D

Topic: The microscope in cell studies
