A Levels Biology (9700)•9700/11/O/N/20

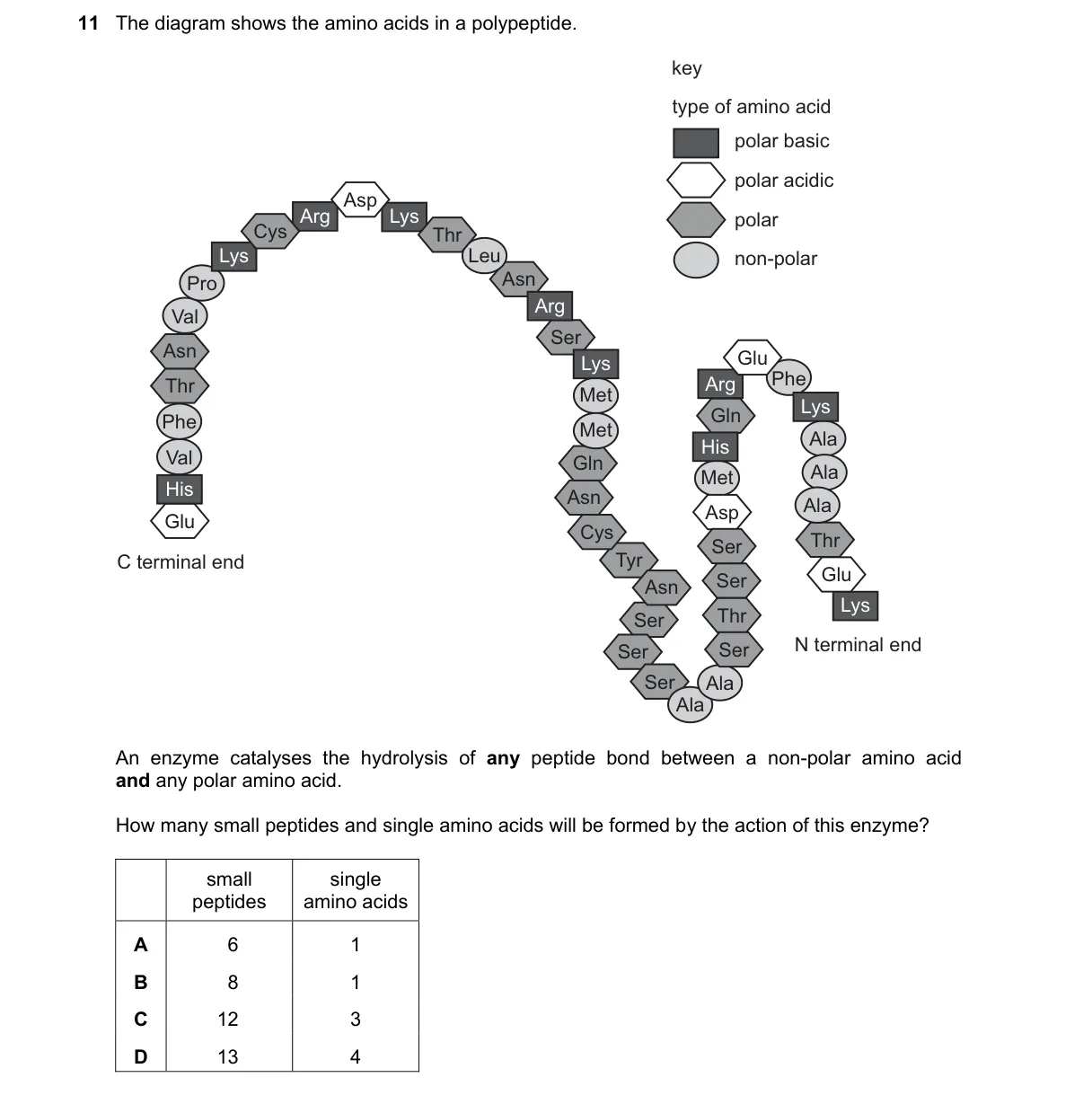

Question 11 from 9700/11/O/N/20

Explanation

Enzyme Cleaves NP-P Bonds, Isolating Singles Steps:

  • Examine the diagram's sequence of amino acids marked as polar basic (■), polar acidic (○), or non-polar (▭).
  • Identify all peptide bonds between non-polar (▭) and any polar (■ or ○) amino acids for hydrolysis.
  • Hydrolysis breaks the chain into fragments of consecutive same-type amino acids.
  • Count fragments of length 1 (single amino acids) released as monomers.

Why D is correct:

  • The sequence has 4 isolated amino acids (each flanked by opposite types), yielding 4 singles after all 13-1=12 possible bonds are selectively cleaved where NP meets polar.

Why the others are wrong:

  • A: Counts only 1 single, ignoring 3 more isolated polars.
  • B: Identifies 3 singles but misses the 4th non-polar isolate.
  • C: Tallies 3 singles, confusing adjacent same-types as separate.

Final answer: D

Topic: Mode of action of enzymes

Practice more A Levels Biology (9700) questions on mMCQ.me
