A Levels Biology (9700)•9700/12/M/J/25

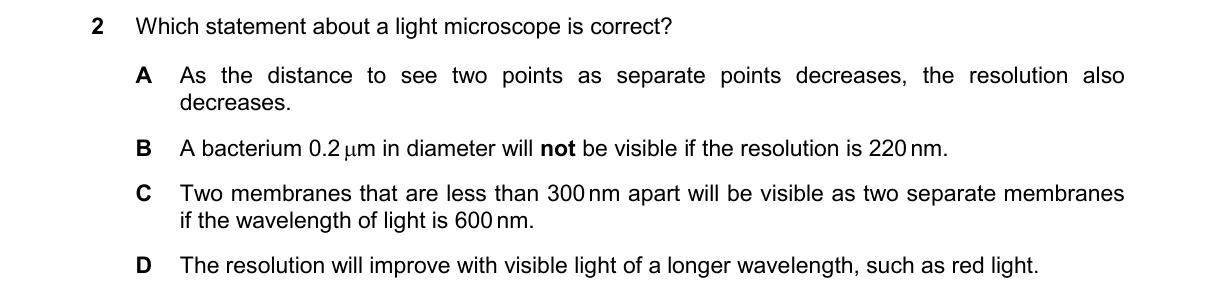

Question 2 from 9700/12/M/J/25

Explanation

Microscope Resolution Limits Visibility

Steps:

  • Resolution is the minimum distance at which two points appear distinct, typically d ≈ λ/(2NA) for light microscopes.
  • Convert units: 0.2 μm = 200 nm, matching the given resolution limit.
  • An object the size of the resolution limit cannot be resolved as a distinct structure.
  • Thus, the bacterium at 200 nm diameter is not visible under 200 nm resolution.

Why B is correct:

  • Per Abbe's diffraction limit, structures equal to or smaller than the resolution d cannot be distinguished from background or resolved.

Why the others are wrong:

  • A: As distance between points decreases, resolution improves (smaller d), not decreases.
  • C: With 600 nm wavelength, resolution is ~300 nm (NA ≈1), so <300 nm separation appears as one.
  • D: Longer wavelengths increase d, worsening resolution.

Final answer: B

Topic: The microscope in cell studies
