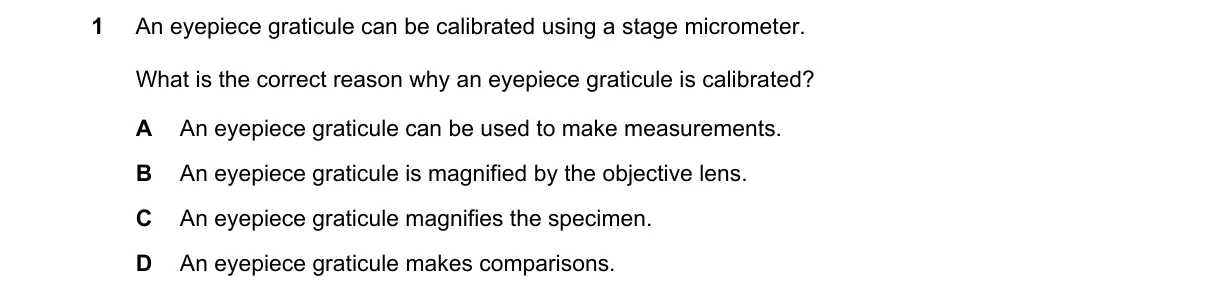

Calibration enables accurate microscopic measurements

Steps:

• Eyepiece graticule provides a reference scale in the eyepiece for estimating specimen size.
• Stage micrometer offers a known, precise scale placed on the microscope stage.
• Aligning both scales under the microscope reveals the true length per graticule unit at specific magnification.
• This calibration converts graticule divisions into actual measurements for specimens.

Why A is correct:

• Calibration defines the real-world value of each graticule division, allowing direct measurements of specimen dimensions as per microscopy standards.

Why the others are wrong:

• B: The graticule is positioned in the eyepiece focal plane, so it is not magnified by the objective lens; only the specimen and stage micrometer are.
• C: The graticule is a measurement overlay and does not magnify; magnification comes from objective and eyepiece lenses.
• D: While comparisons occur during calibration, the purpose is to enable absolute measurements, not just relative ones.

Final answer: A
