O Levels Physics (5054)•5054/11/O/N/22

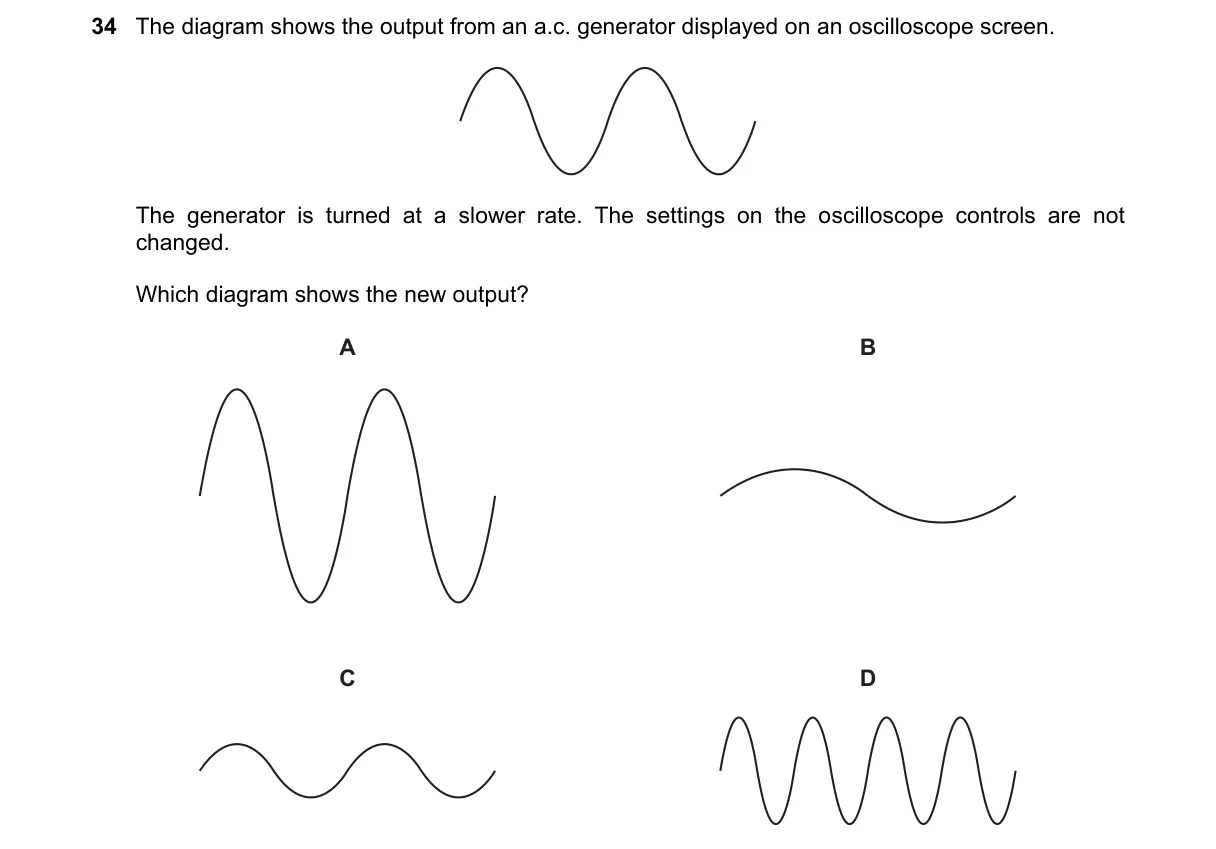

Question 34 from 5054/11/O/N/22

Explanation

Effect of rotation speed on AC waveform period

Steps:

  • AC generator frequency equals rotation speed in cycles per second.
  • Slowing rotation decreases frequency, increasing the waveform period.
  • Oscilloscope time base unchanged, so decreased frequency stretches the waveform horizontally across the screen.
  • Amplitude remains the same as voltage output is unaffected by speed alone.

Why B is correct:

  • B shows a stretched sine wave with longer period, directly following the inverse relationship between frequency and period (T = 1/f).

Why the others are wrong:

  • A: Unchanged waveform, ignores frequency decrease.
  • C: Compressed waveform, implies increased frequency.
  • D: Altered amplitude, but speed affects only period, not peak voltage.

Final answer: B

Topic: The a.c. generator

Practice more O Levels Physics (5054) questions on mMCQ.me
