O Levels Physics (5054)•5054/12/O/N/21

Explanation

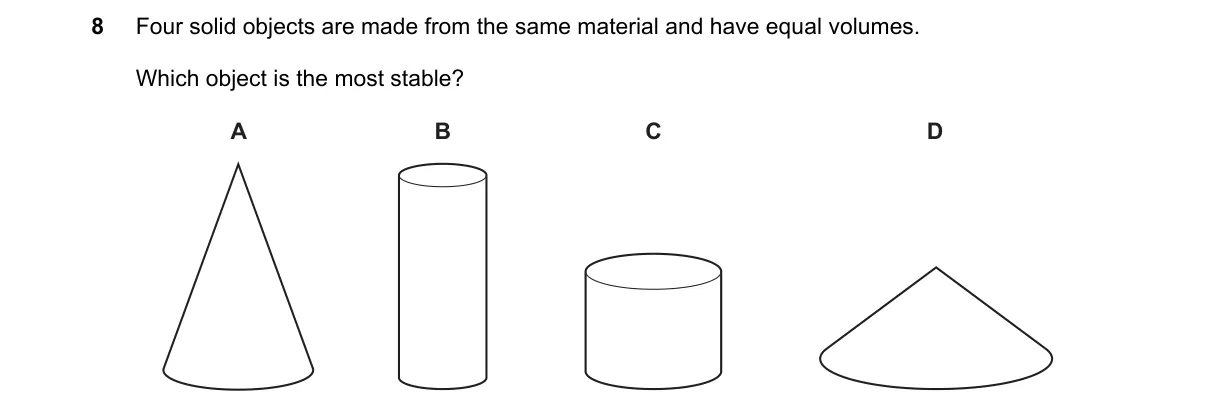

Stability depends on center of mass height Steps:
- All objects have identical mass due to same material and volume.
- Stability increases as the center of mass lowers, reducing tipping torque.
- Calculate center of mass height for each shape using geometric centroid formulas.
- Compare heights: D has the lowest centroid for equal volume.
Why D is correct:
- D's wide, flat shape positions the center of mass closest to the base, minimizing overturning moment per Newton's laws of motion.
Why the others are wrong:
- A: Tall, narrow shape raises center of mass, increasing instability.
- B: Intermediate height elevates center of mass above D's.
- C: Bulkier but taller than D, resulting in higher center of mass.
Final answer: D
Topic: Centre of gravity
