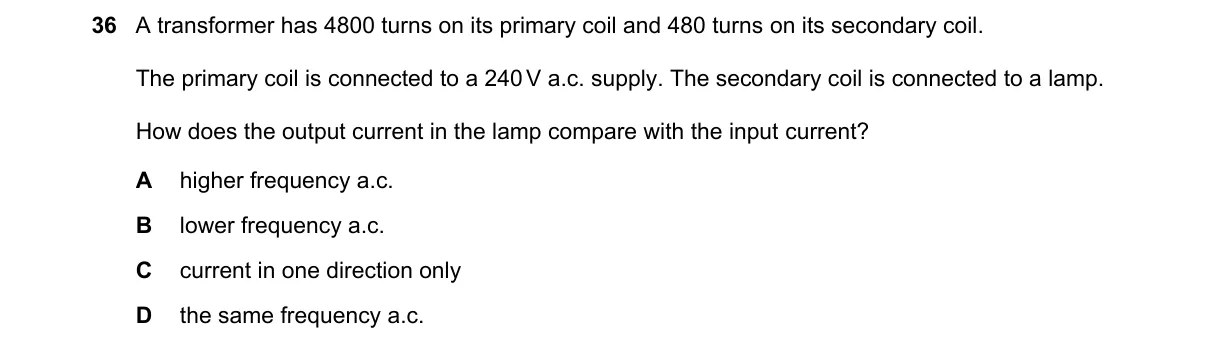

O Levels Physics (5054)•5054/12/O/N/20

Explanation
Transformers preserve AC frequency
Steps:
- Identify transformer type: step-down due to fewer secondary turns (40 vs. 4000).
- Recall transformer principle: voltage ratio equals turns ratio, but frequency remains unchanged.
- Note input is AC at 50/60 Hz (standard supply); output current in lamp is also AC.
- Conclude output current matches input frequency, as magnetic flux alternation drives both coils equally.
Why D is correct:
- Faraday's law states induced EMF frequency equals input AC frequency, so secondary current oscillates at the same rate.
Why the others are wrong:
- A: Transformers cannot increase frequency; they only step voltage up/down.
- B: No mechanism in ideal transformers to decrease frequency.
- C: Output is fully alternating, not unidirectional like rectified DC.
Final answer: D
Topic: The transformer
