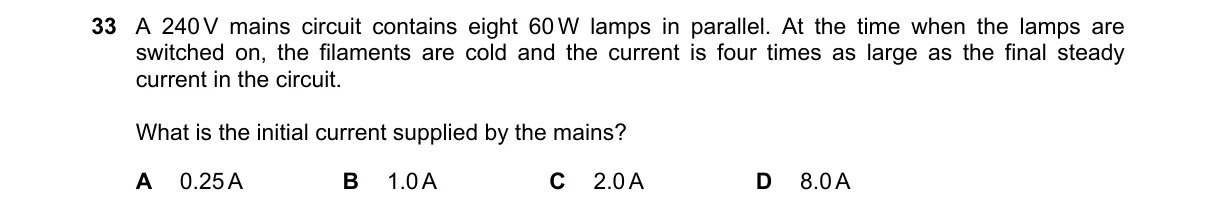

O Levels Physics (5054)•5054/12/O/N/20

Explanation
Cold filaments cause surge current four times the steady state
Steps:
- Steady-state power per lamp is 60W, so total power for eight lamps is 8 × 60W = 480W.
- Steady-state current is total power divided by voltage: 480W / 240V = 2A.
- Initial current is four times the steady-state current due to lower cold filament resistance.
- Thus, initial current is 4 × 2A = 8A.
Why D is correct:
- Ohm's law shows current I = P/V for steady state (2A), and the problem states initial current is four times this, yielding 8A.
Why the others are wrong:
- A: 0.25A ignores total power and surge factor, underestimating by factor of 32.
- B: 1.0A matches one lamp's steady current (60W/240V=0.25A ×4=1A) but forgets eight lamps.
- C: 2A is steady-state total current, not the initial surge.
Final answer: D
Topic: Series and parallel circuits
