O Levels Physics (5054)•5054/12/O/N/19

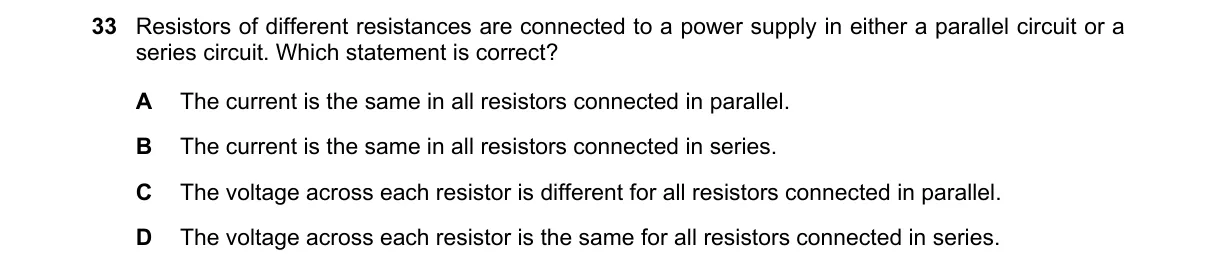

Question 33 from 5054/12/O/N/19

Explanation

Parallel Circuits Share Voltage Equally

Steps:

  • Identify circuit types: series connects resistors end-to-end; parallel connects across same two points.
  • Recall parallel rules: total voltage from supply applies equally across each branch per Kirchhoff's voltage law.
  • Check choices: A misstates current (divides in parallel); B and D confuse voltage behavior; C matches parallel voltage equality.
  • Confirm series contrast: current same, but voltage divides by resistance ratios via Ohm's law (V = IR).

Why C is correct:

  • In parallel, all resistors connect to the same voltage source, so voltage drop is identical across each by definition of parallel paths.

Why the others are wrong:

  • A: Current divides inversely with resistance in parallel, not the same.
  • B: Voltage is the same, not different, in parallel.
  • D: Voltage divides proportionally in series based on resistance values.

Final answer: C

Topic: Series and parallel circuits
