O Levels Physics (5054)•5054/12/M/J/25

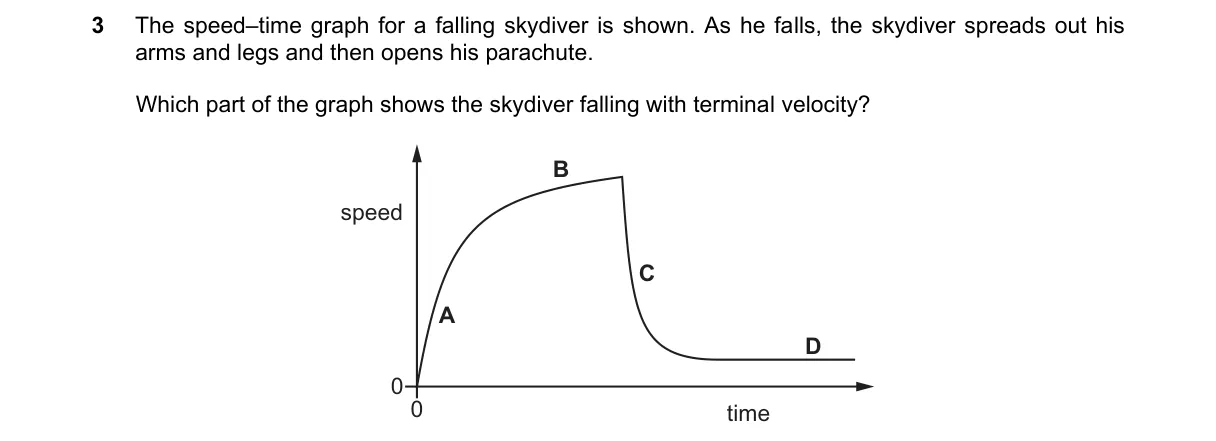

Question 3 from 5054/12/M/J/25

Explanation

Terminal velocity as constant speed on graph Steps:

  • Terminal velocity is reached when drag equals weight, causing zero acceleration and constant speed.
  • On a speed-time graph, this shows as a horizontal line segment.
  • Skydiver accelerates initially, reaches first terminal velocity after spreading limbs, then decelerates upon parachute opening to a lower terminal velocity.
  • The final horizontal line after parachute indicates the new terminal velocity.

Why D is correct:

  • D is the horizontal line after parachute deployment, where increased drag balances weight for constant lower speed (Newton's first law: net force zero).

Why the others are wrong:

  • A: Steep upward slope shows initial acceleration due to gravity exceeding drag.
  • B: Horizontal line before parachute shows first (higher) terminal velocity, not after opening.
  • C: Downward slope shows deceleration from excess drag after parachute.

Final answer: D

Topic: Motion
