O Levels Physics (5054)•5054/12/M/J/22

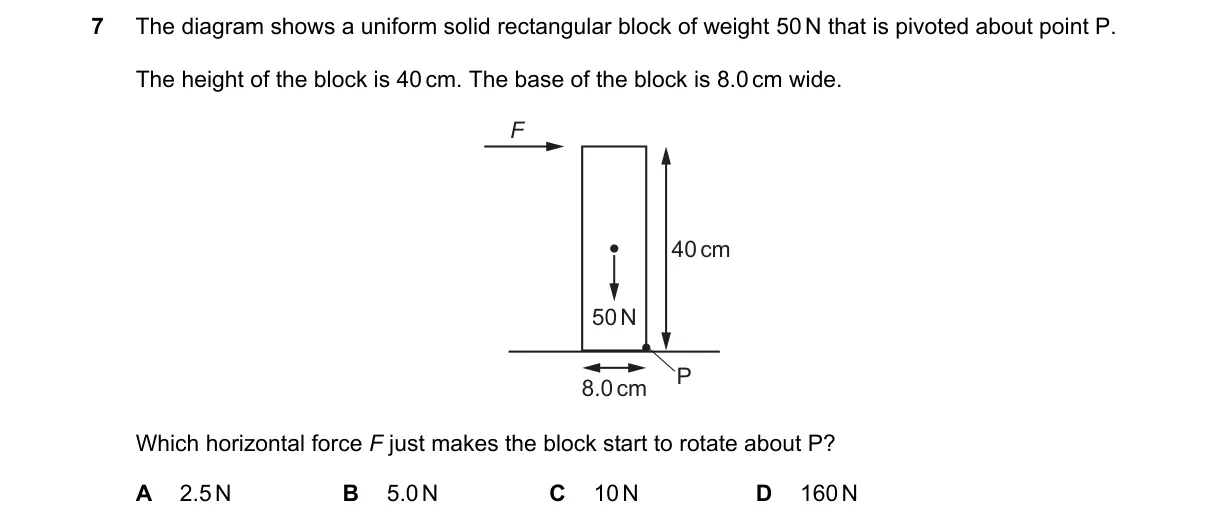

Question 7 from 5054/12/M/J/22

Explanation

Torque balance for tipping

Steps:

  • Center of mass is at horizontal midpoint: 4 cm (0.04 m) from pivot P.
  • Torque from weight about P: 50 N × 0.04 m = 2 Nm (resisting rotation).
  • Horizontal force F applied at top of block: lever arm is height of 40 cm (0.4 m).
  • Minimum F to start rotation: F × 0.4 m = 2 Nm, so F = 5 N.

Why B is correct:

  • Matches torque equilibrium formula τ = F × d, where F balances weight's torque at the top edge.

Why the others are wrong:

  • A: Underestimates by halving the required torque balance.
  • C: Overestimates by using full base width (8 cm) as lever arm for weight.
  • D: Overestimates by ignoring height and misapplying force ratios.

Final answer: B

Topic: Turning effect of forces
