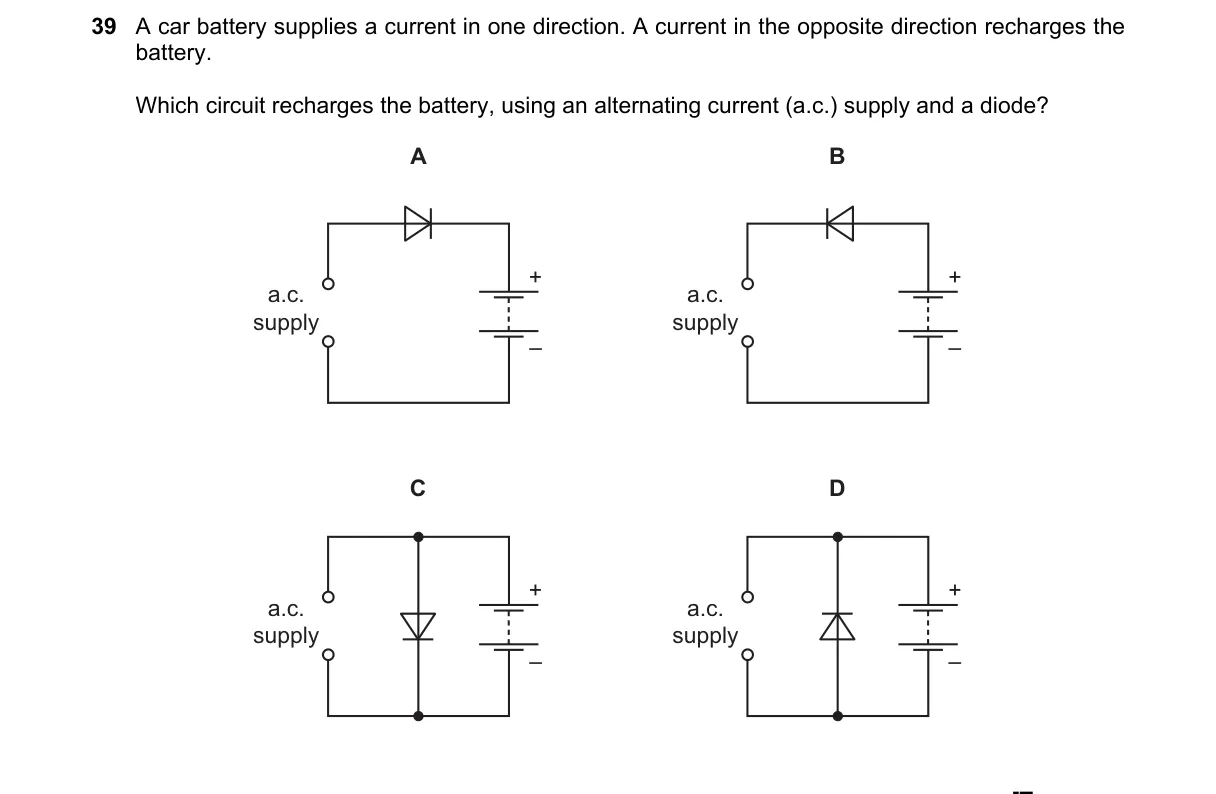

Diode enables half-wave rectification for battery charging

Steps:

• AC supply produces alternating current, positive and negative half-cycles.
• Diode conducts only during positive half-cycle, blocking negative.
• This pulsating DC flows into battery in charging direction.
• Battery recharges as reverse current is prevented.

Why A is correct:

• Diode anode connects to AC line and cathode to battery positive, per diode forward bias rule, allowing charging current per Ohm's law for conductors.

Why the others are wrong:

• B: Diode reversed, blocks all current, no charging path.
• C: Diode in parallel, allows AC directly to battery, damages it.
• D: No diode or incorrect series placement, full AC exposure reverses battery current.

Final answer: A
