Virtual images cannot be projected in enlargers

Steps:

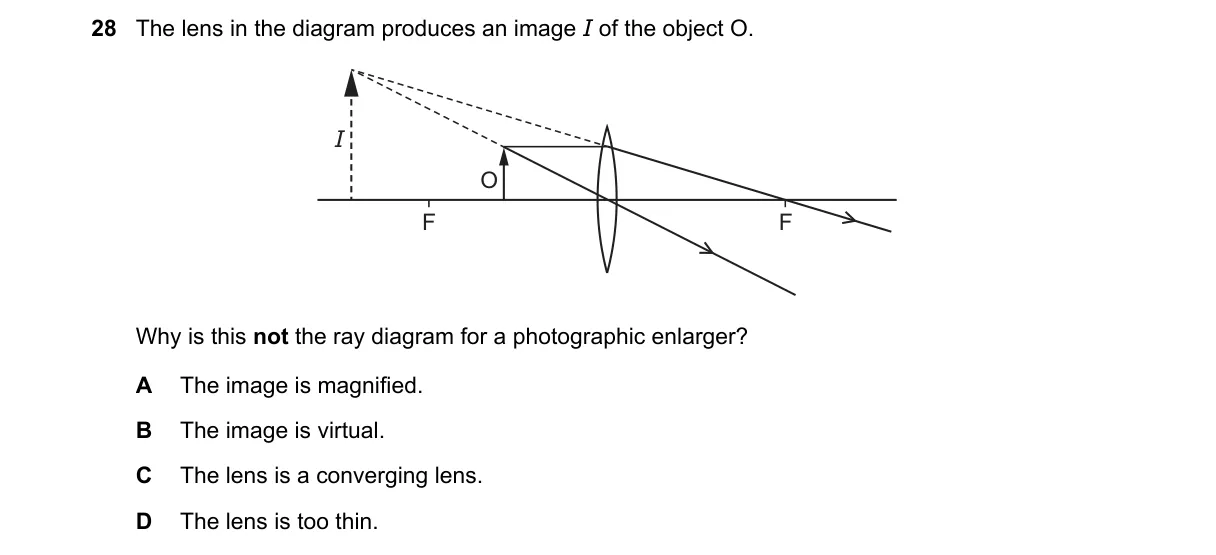

• Examine the ray diagram to determine the image type: rays diverge, indicating a virtual image behind the lens.
• Recall that photographic enlargers use lenses to project enlarged images onto paper or screens.
• Note that enlargers require real images, which form where rays converge in front of the lens.
• Conclude the diagram shows a virtual image, unsuitable for projection in an enlarger.

Why B is correct:

• Virtual images form on the same side as the object and cannot be focused on a screen, per the lens formula where v is negative for virtual images.

Why the others are wrong:

• A: Photographic enlargers produce magnified real images.
• C: Photographic enlargers use converging lenses to form real images.
• D: Lens thickness does not affect image formation type in ray diagrams.

Final answer: B
