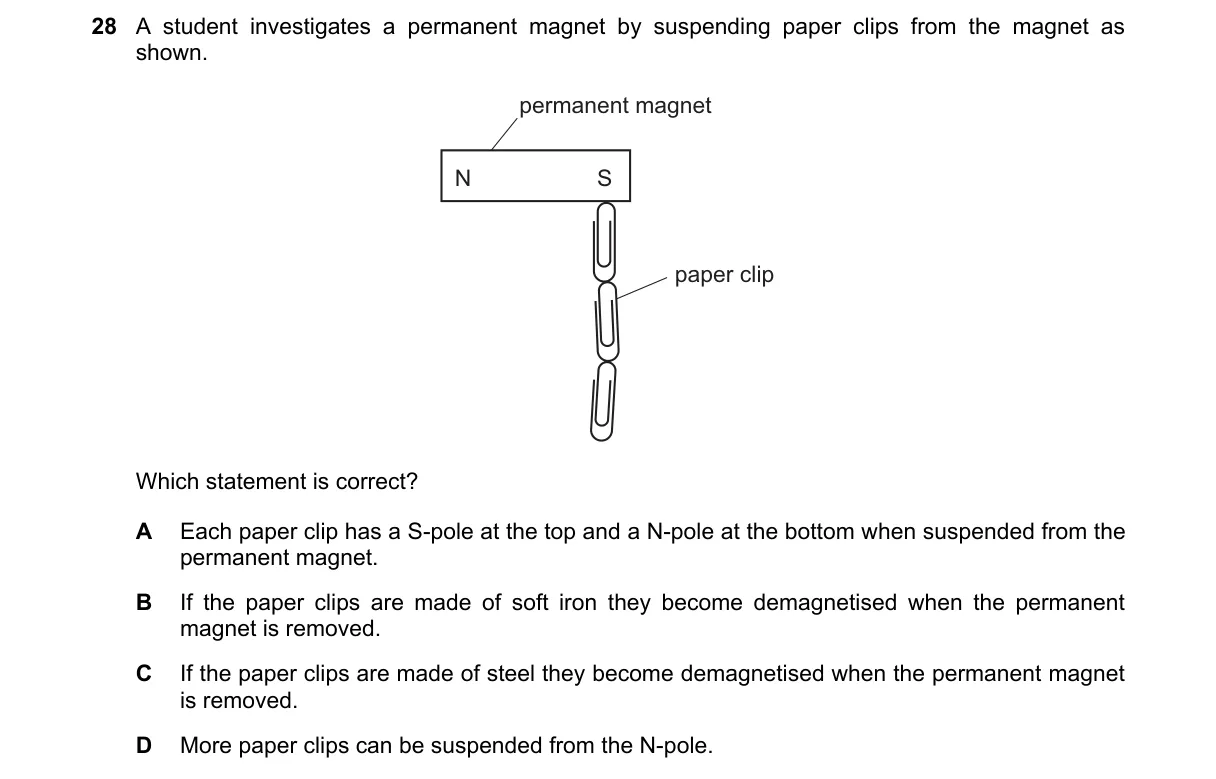

O Levels Physics (5054)•5054/11/M/J/19

Explanation
Induced Magnetism in Soft Iron
Steps:
- Permanent magnet induces opposite poles in the nearest end of the first paper clip, attracting it.
- This magnetized clip induces opposite poles in the next clip, forming a chain.
- Soft iron materials magnetize easily but lose magnetism quickly without an external field.
- Removing the permanent magnet eliminates the inducing field, demagnetizing soft iron clips.
Why B is correct:
- Soft iron exhibits low magnetic retentivity, demagnetizing fully when the external magnetic field from the permanent magnet is removed (Hysteresis loop property).
Why the others are wrong:
- A: Induced polarity depends on the magnet's pole; tops would be south only if suspended from the north pole, not generally true.
- C: Steel has high retentivity, retaining induced magnetism as a weak permanent magnet after removal.
- D: Suspension capacity is symmetric for north and south poles of the magnet.
Final answer: B
Topic: Simple magnetism and magnetic fields
