O Levels Physics (5054)•5054/11/M/J/19

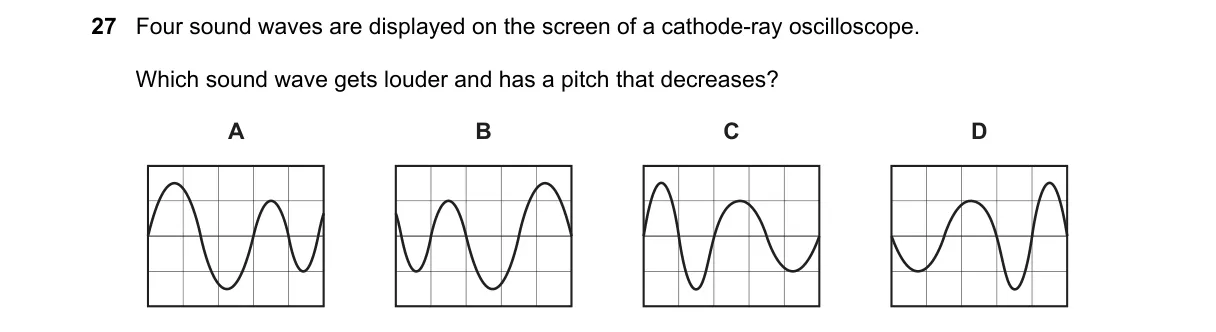

Question 27 from 5054/11/M/J/19

Explanation

Sound wave properties on oscilloscope: amplitude for loudness, frequency for pitch

Steps:

  • Amplitude of the wave trace indicates loudness; increasing amplitude means getting louder.
  • Frequency (or 1/period) indicates pitch; decreasing frequency means pitch decreases.
  • Examine each trace for changes in peak height (amplitude) and wave spacing (period).
  • Identify the trace with rising peaks and widening spacing over time.

Why B is correct:

  • Trace B shows increasing amplitude (taller peaks) and increasing period (wider waves), per the definitions of loudness and pitch in wave physics.

Why the others are wrong:

  • A: Amplitude constant, frequency increases (pitch rises).
  • C: Amplitude decreases, frequency constant (gets quieter, pitch unchanged).
  • D: Amplitude increases, frequency increases (gets louder, pitch rises).

Final answer: B

Topic: Sound
