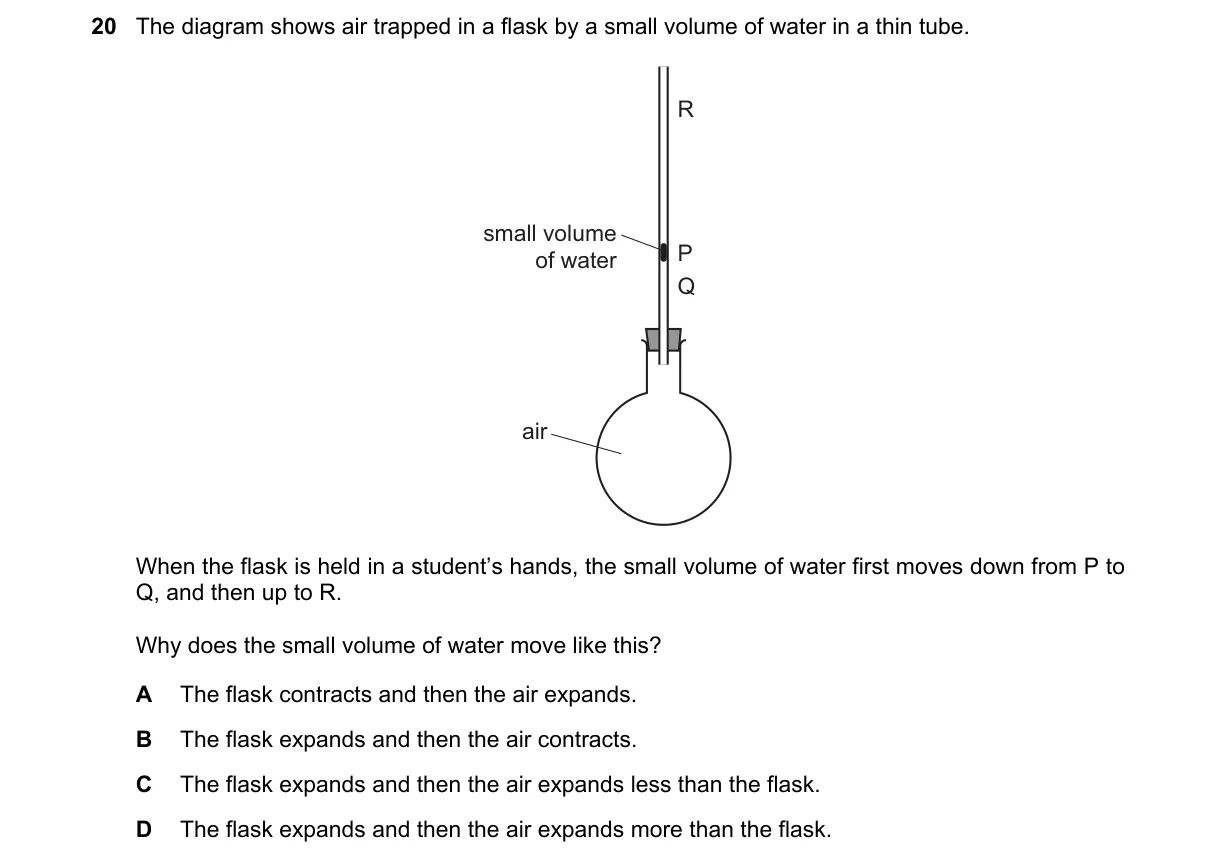

O Levels Physics (5054)•5054/11/M/J/19

Explanation
Differential thermal expansion Steps:
- Hands warm the trapped air faster than the glass flask.
- Air expands more than the flask initially, raising internal pressure above atmospheric and pushing water down from P to Q.
- Glass then expands as it warms, increasing flask volume.
- Total volume now exceeds air expansion, dropping pressure below atmospheric and pulling water up. Why D is correct:
- D states the air expands more than the flask first (pressure up), then flask expands more than air (pressure down), per Charles's law (gas volume ∝ temperature) and linear expansion coefficients (air expands ~10x more than glass per °C). Why the others are wrong:
- A: Flask expands with heat, does not contract.
- B: Air expands continuously with warming, does not contract.
- C: Sequence reversed; air expands more initially, not flask first. Final answer: D
Topic: Thermal expansion of solids, liquids and gases
