O Levels Physics (5054)•5054/12/M/J/18

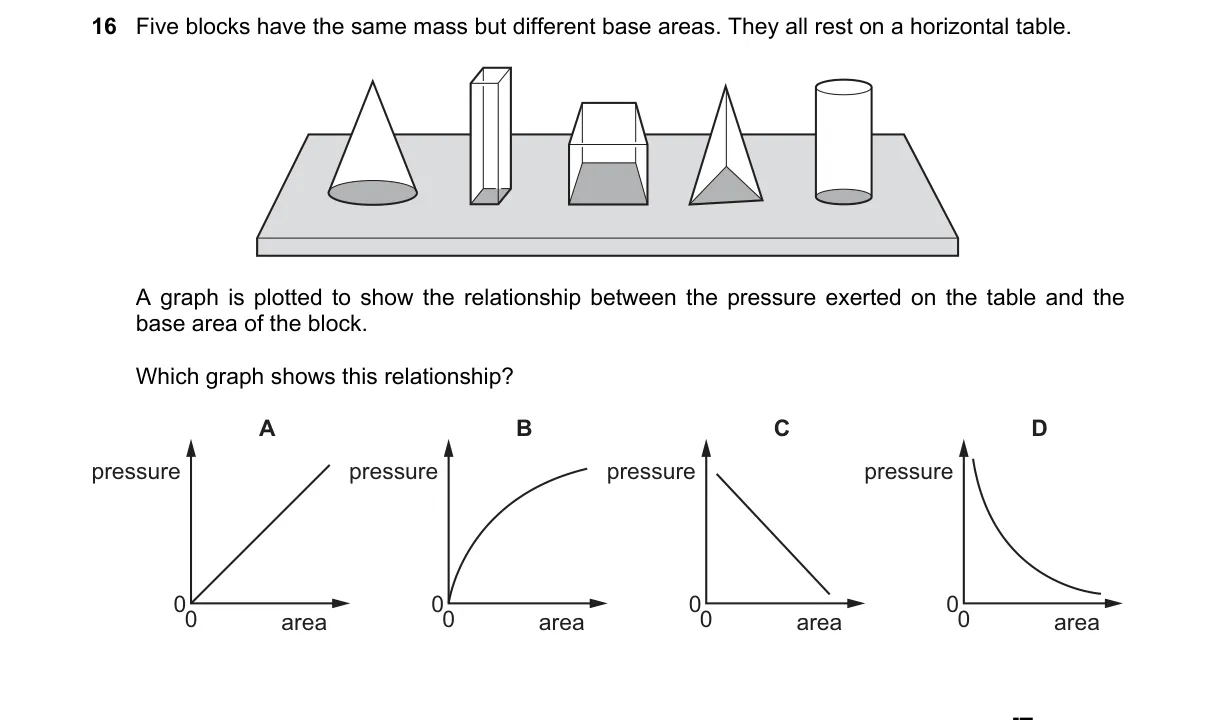

Question 16 from 5054/12/M/J/18

Explanation

Pressure inversely proportional to base area Steps:

  • Pressure P equals force F divided by area A; F is constant (same mass, so same weight mg).
  • With constant F, P is directly proportional to 1/A.
  • Graph of P versus A shows hyperbolic decrease: pressure falls as area rises.
  • Correct graph is downward curve, not linear or constant.

Why D is correct:

  • D depicts P ∝ 1/A, matching the formula for pressure on the table.

Why the others are wrong:

  • A shows direct proportion (P increases with A), violating P = F/A.
  • B shows linear decrease, but relationship is hyperbolic, not straight-line.
  • C shows constant P, ignoring area change with fixed F.

Final answer: D

Topic: Pressure
